The following is a complete example, using the Python API, of generating images containing isochrones via the /visualize/isochrone and /wms endpoints using an existing graph.

Prerequisites

The prerequisites for running the isochrones example are listed below:

Graph server enabled
Python API
Isochrones example script
DC Shape data CSV file

Python API Installation

Depending on the target operating system, a Python virtual environment may need to be installed first:

Python Virtual Environment

The native Kinetica Python API is accessible through the following means:

PyPI
Git

Python Virtual Environment

A Python virtual environment is necessary to install in an operating environment where Python is externally managed.

Install a Python virtual environment:
```
python3 -m venv .venv
```
Activate the Python virtual environment:
```
source .venv/bin/activate
```

PyPI

Install the API:
```
pip3 install gpudb
```
Test the installation:
```
python3 -c "import gpudb;print('Import Successful')"
```
If Import Successful is displayed, the API has been installed as is ready for use.

Git

In the desired directory, run the following, but be sure to replace <kinetica-version> with the name of the installed Kinetica version, e.g., v7.2:
```
git clone -b release/<kinetica-version> --single-branch https://github.com/kineticadb/kinetica-api-python.git
```
Change directory into the newly downloaded repository:
```
cd kinetica-api-python
```
In the root directory of the unzipped repository, install the Kinetica API:
```
sudo pip3 install .
```
Test the installation (Python3 is necessary for running the API example):
```
python3 examples/example.py
```

Data File

The example script references the dc_shape.csv data file, mentioned in the Prerequisites, in the current local directory, by default. This directory can specified as a parameter when running the script.

Script Detail

This example is going to demonstrate the following scenarios using isochrones either via the /visualize/isochrone endpoint or the /wms endpoint:

Find the shared area between Dulles International Airport (IAD), Ronald Reagan Washington National Airport (DCA),and Kinetica HQ by calculating the isochrones for traveling to IAD within 40 minutes, traveling to DCA within 25 minutes, and traveling from Kinetica HQ within 10 minutes and joining the results on the intersection of the isochrones using /visualize/isochrone
Calculating the isochrones for traveling to Kinetica HQ within 15 minutes using /wms

Connections

This example will use two connections, one to the database and one to the WMS endpoint, configured as follows:

Database Connection

kinetica = gpudb.GPUdb(host = [args.url], username = args.username, password = args.password)

WMS Endpoint URL

WMS_URL = args.url + "/wms"

Constants

Many constants are defined at the beginning of the script:

CSV_ROW_SIZE — the expected row number for the CSV file
OPTION_NO_ERROR — reference to a /clear/table option for ease of use and repeatability
OPTION_ISO — a Python dictionary containing /visualize/isochrone options key-value pairs
```
OPTION_ISO = {"concavity_level": "0.2", "is_replicated": "true"}
```

OPTION_ISO_CONTOUR — a Python dictionary containing /visualize/isochrone contour_options key-value pairs

OPTION_ISO_CONTOUR = {
    "adjust_grid": "false",
    "adjust_levels": "false",
    "gridding_method": "INV_DST_POW",
    "labels_font_size": "16",
    "labels_font_family": "Sans",
    "labels_search_window": "4",
    "grid_size": str(100),
    "min_grid_size": "10",
    "max_grid_size": "300",
    "search_radius": "9",
    "smoothing_factor": "0.000001",
    "color_isolines": "true",
    "width": "512", "height": "-1"
}

OPTIONS_ISO_STYLE — a Python dictionary containing /visualize/isochrone style_options key-value pairs

OPTION_ISO_STYLE = {
    "line_size": "2",
    "color": "0xFF000000",
    "bg_color": "0x00000000",
    "colormap": "jet",
    "text_color": "0xFF000000"
}

SCHEMA — the name of the schema in which the tables will be created
TABLE_DC — the name of the table into which the DC Shape dataset is loaded
TABLE_D_LVL — the name of the table into which the IAD isochrone contour levels are output
TABLE_JOIN — the name of the join view hosting the shared area between the three isochrone contour level output tables
TABLE_K_ISO_SOLVE — the name of the table into which the WMS examples’ isochrones solution (the position and cost for each vertex in the underlying graph) is output
TABLE_K_LVL1 — the name of the table into which the Kinetica isochrone (leading from) contour levels are output
TABLE_K_LVL2 — the name of the table into which the Kinetica isochrone (leading to) contour levels are output
TABLE_R_LVL — the name of the table into which the DCA isochrone contour levels are output
GRAPH_DC — the underlying DC shape graph that powers the isochrone calculation

D_AIR, K_HQ, R_AIR — the source nodes for the IAD, Kinetica HQ, & DCA isochrone requests, respectively

D_AIR = "POINT(-77.446831 38.955309)"
K_HQ = "POINT(-77.115203 38.881578)"
R_AIR = "POINT(-77.042295 38.849684)"

D_AIR_IMG, K_HQ_IMG1, K_HQ_IMG2, R_AIR_IMG — the resulting generated isochrone image from the IAD, Kinetica HQ (leading from), Kinetica HQ (leading to), & DCA isochrone requests, respectively

Graph Creation

One graph is used for the isochrones examples utilized in the script: dc_shape_graph, a graph based on the dc_shape dataset (the CSV file mentioned in Prerequisites).

The example script will first check to see if the dc_shape table and dc_shape_graph exist; if either does not, they will be created.

The dc_shape_graph is created with the following characteristics:

It is directed because the roads in the graph have directionality (one-way and two-way roads)
It has no explicitly defined nodes because the nodes are not used in these examples
The edges are represented using WKT LINESTRINGs in the shape column of the dc_shape table (WKTLINE). Each edge’s directionality is derived from the direction column of the dc_shape table (DIRECTION).
The weights represent the time taken to travel the edge, which is derived from the length of the edge divided by the speed column values also found in the dc_shape table. This derived time value is mapped to the VALUESPECIFIED identifier.
It has no inherent restrictions for any of the nodes or edges in the graph

It will be replaced with this instance of the graph if a graph of the same name exists (recreate)

Create Graph

create_graph_dc_resp = kinetica.create_graph(
    graph_name = GRAPH_DC,
    directed_graph = True,
    nodes = [],
    edges = [
        TABLE_DC + ".direction AS DIRECTION",
        TABLE_DC + ".shape AS WKTLINE"
    ],
    weights = [
        TABLE_DC + ".direction AS EDGE_DIRECTION",
        TABLE_DC + ".shape AS EDGE_WKTLINE",
        "ST_LENGTH(" + TABLE_DC + ".shape,1)/" + TABLE_DC + ".speed AS VALUESPECIFIED"
    ],
    restrictions = [],
    options = {"recreate": "true"}
)

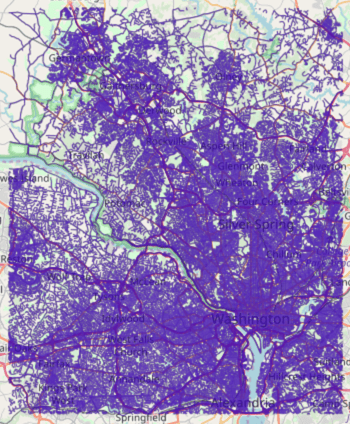

The graph output to WMS:

Visualizing Isochrones

First, additional contour and isochrones options are provided:

add_labels is set to true to display labels on the isochrones image
projection is set to web_mercator to change the spatial reference system
solve_direction is set to to_source to calculate isochrones leading to IAD

Then, the first group of isochrones is calculated using the following parameters and an image is generated using /visualize/isochrone endpoint:

source_node is provided as a WKT point (D_AIR) paired with a NODE_WKTPOINT identifier
max_solution_radius is set for 2400 seconds’ (or 40 minutes’) worth of travel surrounding the source node
num_levels is set to 1 to only display one isochrone contour around the source node
generate_image is set to True to generate an image and output it to the response

Request IAD Isochrone Image

vis_isochrone_d_resp = kinetica.visualize_isochrone(
    graph_name = GRAPH_DC,
    source_node = D_AIR + " AS NODE_WKTPOINT",
    max_solution_radius = 40 * 60,
    num_levels = 1,
    generate_image = True,
    levels_table = TABLE_D_LVL,
    style_options = OPTION_ISO_STYLE,
    contour_options = OPTION_ISO_CONTOUR,
    options = OPTION_ISO
)

The image is pulled from the response and written locally:

Write IAD Isochrone Image to Disk

img = vis_isochrone_d_resp["image_data"]
img_isochrones_to_dulles = open(D_AIR_IMG, "wb")
img_isochrones_to_dulles.write(img)
img_isochrones_to_dulles.close()

The generated image for IAD isochrones:

The second group of isochrones is calculated using the following parameters:

The solve_direction is still to_source at this point, so the second group of isochrones is calculated for leading to DCA

source_node is provided as a WKT point (R_AIR) paired with a NODE_WKTPOINT identifier
max_solution_radius is set for 1500 seconds’ (or 25 minutes’) worth of travel surrounding the source node
num_levels is set to 1 to only display one isochrone contour around the source node
generate_image is set to True to generate an image and output it to the response

Request DCA Isochrone Image

vis_isochrone_r_resp = kinetica.visualize_isochrone(
    graph_name = GRAPH_DC,
    source_node = R_AIR + " AS NODE_WKTPOINT",
    max_solution_radius = 25 * 60,
    num_levels = 1,
    generate_image = True,
    levels_table = TABLE_R_LVL,
    style_options = OPTION_ISO_STYLE,
    contour_options = OPTION_ISO_CONTOUR,
    options = OPTION_ISO
)

The image is pulled from the response and written locally:

Write DCA Isochrone Image to Disk

img = vis_isochrone_r_resp["image_data"]
img_isochrones_to_reagan = open(R_AIR_IMG, "wb")
img_isochrones_to_reagan.write(img)
img_isochrones_to_reagan.close()

The generated image for DCA isochrones:

Before the last example, the solve direction is updated to reflect that the isochrones are calculated leading from Kinetica HQ:

Update Solve Orientation

OPTION_ISO["solve_direction"] = "from_source"

Finally, the third group of isochrones can be calculated using the following parameters:

source_node is provided as a WKT point (K_HQ) paired with a NODE_WKTPOINT identifier
max_solution_radius is set for 600 seconds’ (or 10 minutes’) worth of travel surrounding the source node
num_levels is set to 1 to only display one isochrone contour around the source node
generate_image is set to True to generate an image and output it to the response

Request Kinetica HQ Isochrone Image

vis_isochrone_k1_resp = kinetica.visualize_isochrone(
    graph_name = GRAPH_DC,
    source_node = K_HQ + " AS NODE_WKTPOINT",
    max_solution_radius = 10 * 60,
    num_levels = 1,
    generate_image = True,
    levels_table = TABLE_K_LVL1,
    style_options = OPTION_ISO_STYLE,
    contour_options = OPTION_ISO_CONTOUR,
    options = OPTION_ISO
)

The image is pulled from the response and written locally:

Write Kinetica HQ Isochrone Image to Disk

img = vis_isochrone_k1_resp["image_data"]
img_isochrones_from_kinetica = open(K_HQ_IMG1, "wb")
img_isochrones_from_kinetica.write(img)
img_isochrones_from_kinetica.close()

The generated image for Kinetica HQ (leading from) isochrones:


To find the shared area between the three contours that were just created, the ST_INTERSECTION() geospatial function is used to join the three tables together:

Geospatial Intersection via Join

create_join_resp = kinetica.create_join_table(
    join_table_name = TABLE_JOIN,
    table_names = [
        TABLE_D_LVL + " AS DULLES",
        TABLE_K_LVL1 + " AS KINETICA",
        TABLE_R_LVL + " AS REAGAN"
    ],
    column_names = [
        "ST_INTERSECTION(REAGAN.Isochrones, ST_INTERSECTION(KINETICA.Isochrones, DULLES.Isochrones)) AS shared_isochrones"
    ],
    expressions = [],
    options = {}
)

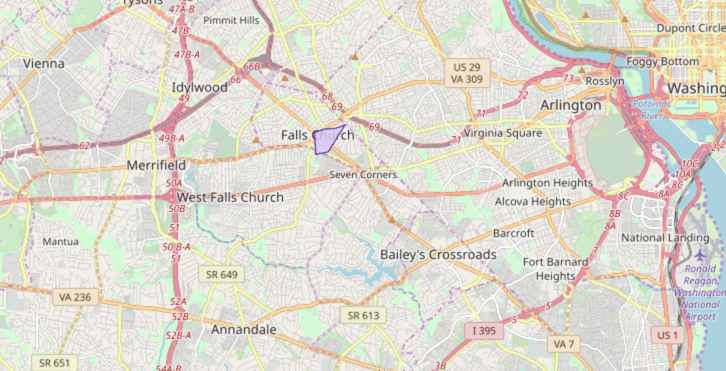

The shared area geometry output to WMS:

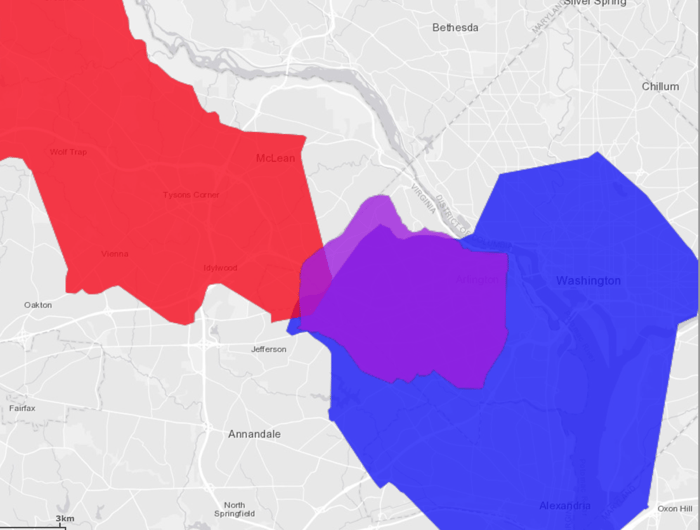

The three isochrones overlaid on top of each other:

Red signifies being within 40 minutes of IAD
Blue signifies being within 25 minutes of DCA
Purple signifies being within 10 minutes of Kinetica HQ

Visualizing Isochrones Using WMS

To visualize isochrones via the /wms endpoint, the WMS payload must be constructed. Consult /wms for more information on WMS parameters, styles, and style options. WMS payloads require a small set of standard parameters that will generally be the same across all WMS requests:

Standard WMS Parameters

"request": "GetMap",
"version": "1.1.1",
"format": "image/png",

The next settings inform WMS to generate isochrones (and to make Isochrones parameters available for use) and to set the image width to 512 pixels. The image height is set to -1, which the database will replace with the value resulting from multiplying the aspect ratio by the image width.

Standard Isochrone Parameters

"styles": "isochrone",
"image_width": 512,
"image_height": -1,

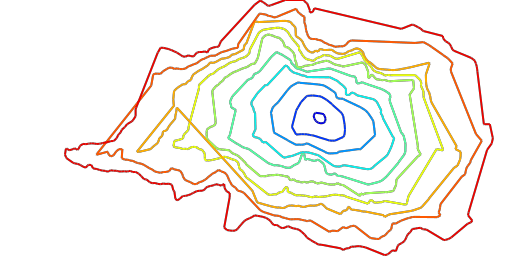

The following parameters define how the isochrones will be calculated. Notice these are similar to the previous examples:

source_node is provided as a WKT point (K_HQ) paired with a NODE_WKTPOINT identifier
max_solution_radius is set for 900 seconds’ (or 15 minutes’) worth of travel surrounding the source node
num_levels is set to 10 to 10 isochrone contours around the source node
generate_image is set to True to generate an image and output it to the response

Kinetica HQ Isochrone Parameters

"graph_name": GRAPH_DC,
"source_node": K_HQ + " AS NODE_WKTPOINT",
"max_solution_radius": "900",
"num_levels": "10",
"generate_image": "true",
"levels_table": TABLE_K_LVL2,

Isochrone style options are passed in using the constants:

Isochrone Style Parameters

"line_size": OPTION_ISO_STYLE["line_size"],
"color": OPTION_ISO_STYLE["color"][2:],  # remove the 0x
"bg_color": OPTION_ISO_STYLE["bg_color"][2:],  # remove the 0x
"colormap": OPTION_ISO_STYLE["colormap"],

Isochrone contour options are passed in. Additional contour style parameters are passed in for additional customization over the generated isochrones:

Isochrone Contour Parameters

"projection": "plate_carree",
"search_radius": OPTION_ISO_CONTOUR["search_radius"],
"color_isolines": OPTION_ISO_CONTOUR["color_isolines"],
"add_labels": "false",
"gridding_method": OPTION_ISO_CONTOUR["gridding_method"],
"smoothing_factor": OPTION_ISO_CONTOUR["smoothing_factor"],
"max_search_cells": "100",
"min_grid_size": OPTION_ISO_CONTOUR["min_grid_size"],
"max_grid_size": OPTION_ISO_CONTOUR["max_grid_size"],

Lastly, isochrone options are passed in. Note the change in direction for the solve_direction as we want isochrones leading to Kinetica HQ in this instance.

Isochrone Solve & Output Parameters

"solve_table": TABLE_K_ISO_SOLVE,
"is_replicated": OPTION_ISO["is_replicated"],
"concavity_level": OPTION_ISO["concavity_level"],
"solve_direction": "to_source"

The WMS request is sent and the image is pulled from the response and written locally:

Request Isochrone Image

params = urllib.urlencode(payload)
call_wms_request = requests.get(WMS_URL, auth=(username, password), params=params)
wms_img = call_wms_request.content

Write Isochrone Image to Disk

img_isochrones_to_kinetica = open(K_HQ_IMG2, "wb")
img_isochrones_to_kinetica.write(wms_img)
img_isochrones_to_kinetica.close()

The generated image for Kinetica HQ (leading to) isochrones:

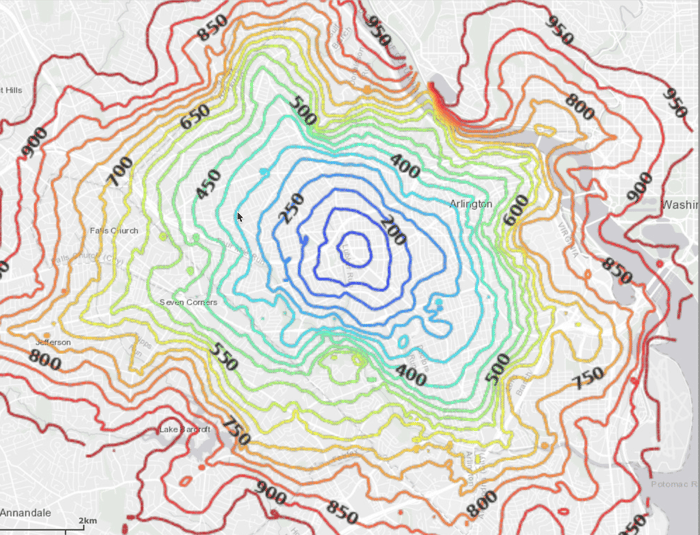

With labels and map data underneath:

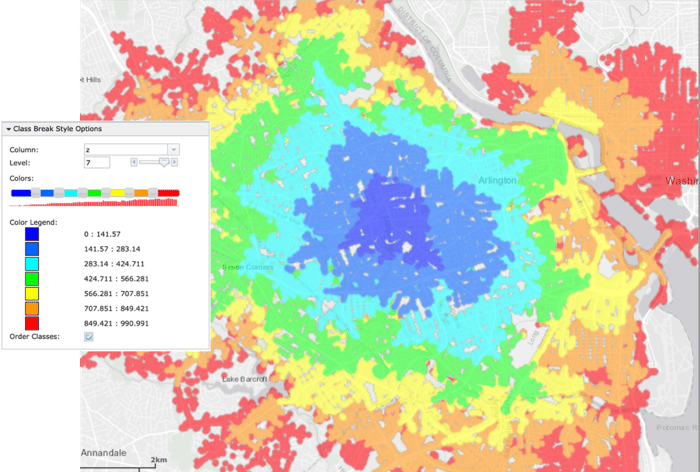

Using the solve_table (TABLE_K_ISO_SOLVE), you can class break on the z (cost) column in WMS to see individual points and their relative cost:

Download & Run

Included below is a complete example containing all the above requests, the data files, and output.

To run the complete sample, ensure that:

the isochrones.py script is in the current directory
the dc_shape.csv file is in the current directory or use the data_dir parameter to specify the local directory containing it

Then, run the following:

Run Example

python isochrones.py [--url <kinetica_url>] --username <username> --password <password> [--data_dir <data_file_directory>]

​Prerequisites

​Python API Installation

​Python Virtual Environment

​PyPI

​Git

​Data File

​Script Detail

​Connections

​Constants

​Graph Creation

​Visualizing Isochrones

​Visualizing Isochrones Using WMS

​Download & Run

Prerequisites

Python API Installation

Python Virtual Environment

PyPI

Git

Data File

Script Detail

Connections

Constants

Graph Creation

Visualizing Isochrones

Visualizing Isochrones Using WMS

Download & Run
