Graphs & Solvers Concepts

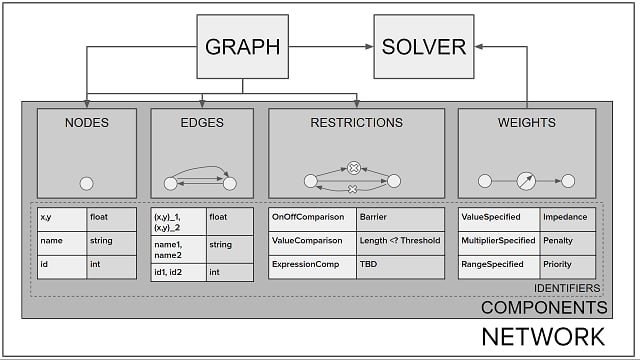

Kinetica provides a generic and extensible design of networks with the aim of being tailored or used for various real-life applications, such as transportation, utility, social, and geospatial. Networks comprise a graph and a solver. A graph represents topological relationships via nodes that are connected by edges; a solver represents the type of solution appropriate for the issue the graph was made to illustrate. See the following supplemental briefs for details and examples:

The graph server is enabled by default; it can be managed via standard Kinetica Service Management. For more information on using and configuring multiple graph servers, see Distributed Graph Servers. Graph server logs are available in /opt/gpudb/graph/logs. See the Configuration Reference for more information on graph server configuration.

Using SQL or native API, a user can create a graph from several components, solve the graph using one of several solver types, and query the solved graph.
Graphs can also be created & previewed using the GAdmin UI or Workbench UI.

Solvers

Kinetica has several different solvers available for presenting solutions to various types of graph problems. Note that some solvers are only available to /solve/graph and likewise for /match/graph. Consult Solving a Graph or Matching a Graph for more information on the desired operation.

Solve Graph Solvers

Solver	Description	CPU Parallel
`ALLPATHS`	Determines all reasonable paths between a source and destination pair.	X
`BACKHAUL_ROUTING`	Determines the optimal routes between remote asset nodes and fixed asset nodes.	X
`CENTRALITY`	Calculates the degree of a node to depict how many pairs of individuals that would have to go through the node to reach one another in the minimum number of hops. Also known as betweenness.	X
`CLOSENESS`	Calculates the centrality closeness score per node as the sum of the inverse shortest path costs to all nodes in the graph.	X
`INVERSE_SHORTEST_PATH`	Determines the shortest path downstream using multiple technician routing.	X
`MULTIPLE_ROUTING`	Calculates the shortest possible route between the nodes and returns to the origin node — also known as the traveling salesman.	X
`PAGE_RANK`	Calculates how connected the nodes are and determines which nodes are the most important. Weights are not required.	X
`PROBABILITY_RANK`	Calculates the probability of a node being connected to another node using hidden Markov chains.	X
`SHORTEST_PATH`	Determines the shortest path upstream between given source(s) and destination(s).	X
`STATS_ALL`	Calculates graph statistics such as graph diameter, longest pairs, vertex valences, topology numbers, average and max cluster sizes, etc.	X

Match Graph Solvers

Solver	Description	CPU Parallel
`MARKOV_CHAIN`	Matches sample points to the graph using the Hidden Markov Model (HMM)-based method, which conducts a range-tree closest-edge search to find the best combinations of possible road segments for each sample point to create the best route. The route is secured one point at a time, so the prediction is corrected after each point. This solution type is the most accurate, but also the most computationally intensive.	X
`MATCH_BATCH_SOLVES`	Matches each provided sample source and destination pair using the shortest path between the points.	X
`MATCH_CHARGING_STATIONS`	Matches a given sample source and destination pair to the optimal recharging stations along the route (for EVs).	X
`MATCH_CLUSTERS`	Matches the graph nodes with a cluster index using the Louvain clustering algorithm. .. note:: Parallel running of this solver is experimental and can be invoked .. note:: Parallel running of this solver is experimental and can be invoked .. note:: Parallel running of this solver is experimental and can be invoked .. note:: Parallel running of this solver is experimental and can be invoked .. note:: Parallel running of this solver is experimental and can be invoked .. note:: Parallel running of this solver is experimental and can be invoked .. note:: Parallel running of this solver is experimental and can be invoked .. note:: Parallel running of this solver is experimental and can be invoked .. note:: Parallel running of this solver is experimental and can be invoked with the `parallel_clustering` option.	X* Parallel running of this solver is experimental and can be invoked \|
`MATCH_LOOPS`	Matches closed loops (Eulerian paths) originating and ending at each graph node between min and max hops (levels).	X
`MATCH_OD_PAIRS`	Matches sample points to find the most probable path between origin and destination (OD) pairs with given cost constraints.	X
`MATCH_SIMILARITY`	Computes the Jaccard similarity between vertex pairs and N-level intersections within M hops.	X
`MATCH_SUPPLY_DEMAND`	Matches sample generic supply depots to generic demand points using abstract transportation (referred to as trucks). Each route is determined by a truck’s ability (size) to service demand at each demand point.	X

Components and Identifiers

Graph components (e.g., nodes, edges, weights, and/or restrictions) must be defined with varying combinations of the identifiers listed in the tables below. Components for create, solve, query, and match operations can be identified in three ways:

Aliasing existing table columns, e.g., table_name.column_name AS WKTPOINT
Using expressions, e.g., ST_LENGTH(wkt) AS VALUESPECIFIED
Using constant values, where strings & WKTs are single-quoted, non-decimal numbers will be given an int or long type according to their size (or can be coerced to long by using an L suffix, like 1L), and decimal numbers will be given the double type; e.g.:
- {0} AS ONOFFCOMPARED
- {1L, 2, 3L, 4, 5} AS ID
- {1.1, 12.345689, 123.456789456789} AS NODE1_X
- {'name1', 'name2'} AS NAME
- {'POINT(10 15)'} AS WKTPOINT

There are separate identifiers and combinations for /solve/graph, /query/graph, and /match/graph. See below for /solve/graph identifiers; see the associated Querying a Graph and Matching a Graph sections for their respective endpoint identifiers.

Identifiers are flagged aliases that the database knows to look for; existing source columns can be used as identifiers. Note that it will often be the case that source columns are reused for different identifiers because the components must naturally be linked together to create a graph. For example, source table seattle_road_network has columns WKTLINE (a wkt column), TwoWay (an integer column), and time (also an integer column); these columns could be identified via /create/graph like so:

Create Graph Example

create_s_graph_response = kinetica.create_graph(
    graph_name = GRAPH_S,
    directed_graph = True,
    nodes = [],
    edges = [
        TABLE_SRN + ".WKTLINE AS WKTLINE",
        TABLE_SRN + ".TwoWay AS DIRECTION"
    ],
    weights = [
        TABLE_SRN + ".WKTLINE AS EDGE_WKTLINE",
        TABLE_SRN + ".TwoWay AS EDGE_DIRECTION",
        TABLE_SRN + ".time AS VALUESPECIFIED"
    ],
    restrictions = [],
    options = {
        "recreate": "true"
    }
)

Identifiers with string as a supported type can be any string column type, e.g., char1 - char256 or unrestricted string. Identifiers with wkt as a supported type can include optional z-level values for the provided WKT shape but note that graphs only support z-levels ranging from -4 to +5.

Nodes

Nodes represent fundamental topological units of a graph. Nodes can be defined with an integer ID, a string name, or geospatial information, e.g., WKT point (POINT(X Y [Z])) or XY pair. Nodes are optional, as the start and end points of an edge can implicitly be used as nodes.

Identifier	Supported Types	Description
`ID`	`int`, `long`	A number representing a node identifier
`LABEL`	`string`	A string value representing a node’s label
`NAME`	`string`	A string value representing a node’s name
`PARTITION_BOUNDARY`	`long`	A number representing the ID of the partition containing this node, when using explicit partitioning to segment the graph; nodes spanning partition boundaries will need to be duplicated in the source table, once for each partition in which the node will reside
`WKTPOINT`	`wkt`	A WKT string representing a node’s geospatial point; e.g., `POINT(X Y [Z])` See Geospatial Objects for more information on WKTs.
`X`	`float`, `double`, `int`, `long`	A number representing a node’s X or longitude value
`Y`	`float`, `double`, `int`, `long`	A number representing a node’s Y or latitude value

Edges

Edges represent the required fundamental topological units of a graph that typically connect nodes. Edges can be defined with an integer ID, string name, or geospatial information, e.g., WKT point (POINT(X Y [Z])), line (LINESTRING(X1 Y1 [Z1], X2 Y2 [Z2])), or XY pairs. An edge can be implicitly drawn between two nodes. If an edge is defined using WKT linestrings, the graph server is capable of splitting many linestring segments into multiple, separate linestrings, thus creating one edge per linestring segment.

Identifier	Supported Types	Description
`ID`	`int`, `long`	A number representing an edge identifier
`DIRECTION`	`int`	A number representing what direction the edge can be traveled: * `0`: forward one-way edge (node 1 —> node 2) * `1`: two-way edge (node 1 —> node 2 and node 2 —> node 1) * `2`: backward one-way edge (node 2 —> node 1)
`LABEL`	`string`	A string value representing an edge’s label
`NODE1_ID`	`int`, `long`	A number representing the edge’s first node
`NODE1_NAME`	`string`	A string value representing the edge’s first node’s name
`NODE1_WKTPOINT`	`wkt`	A WKT string representing the edge’s first node’s geospatial point; e.g., `POINT(X1 Y1 [Z1])` See Geospatial Objects for more information on WKTs.
`NODE1_X`	`float`, `double`, `int`, `long`	A number representing the edge’s first node’s X or longitude value
`NODE1_Y`	`float`, `double`, `int`, `long`	A number representing the edge’s first node’s Y or latitude value
`NODE2_ID`	`int`, `long`	A number representing the edge’s second node
`NODE2_NAME`	`string`	A string value representing the edge’s second node’s name
`NODE2_WKTPOINT`	`wkt`	A WKT string representing the edge’s second node’s geospatial point; e.g., `POINT(X2 Y2 [Z2])` See Geospatial Objects for more information on WKTs.
`NODE2_X`	`float`, `double`, `int`, `long`	A number representing the edge’s second node’s X or longitude value
`NODE2_Y`	`float`, `double`, `int`, `long`	A number representing the edge’s second node’s Y or latitude value
`PARTITION`	`long`	A number representing the ID of the partition containing this edge, when using explicit partitioning to segment the graph
`WEIGHT_VALUESPECIFIED`	`float`, `double`, `int`, `long`	A number representing the edge’s associated weight value; if this identifier is provided, additional weights do not need to be specified
`WKTLINE`	`wkt`	A WKT string representing an edge’s geospatial line; e.g., `LINESTRING(X1 Y1 [Z1], X2 Y2 [Z2])` See Geospatial Objects for more information on WKTs.

Weights

Weights represent a method of informing the graph solver of the cost of including a given edge in a solution. Weights can be defined using an integer ID, string node names, or spatial information (LINESTRING(X1 Y1 [Z1], X1 Y1 [Z1])) and a static cost value or a cost multiplier. Each edge is associated with one weight, but there can be many edges between two nodes in a graph with directionality (EDGE_DIRECTION), allowing for many different weights along the same edge, which can have useful applications in real-world examples, e.g., different lanes between two junctions may have different speeds of travel. For graphs that define edges using complex WKT linestrings (e.g., linestrings with more than two points), weights are applied consistently to each segment of the linestring. For example, if LINESTRING(0 0, 1 3, 4 5) is provided as an edge source and a weight of 5 is assigned to that source, the resulting graph would have two edges, LINESTRING(0 0, 1 3) and LINESTRING(1 3, 4 5), that would both have a weight of 5. See Fitting Data for more information.

If DIRECTION is specified for an edge in a directed graph, the weight will be the same going in each direction.

Identifier	Supported Types	Description
`EDGE_DIRECTION`	`int`	A number representing what direction the edge can be traveled: * `0`: forward one-way edge (node 1 —> node 2) * `1`: two-way edge (node 1 —> node 2 and node 2 —> node 1) * `2`: backward one-way edge (node 2 —> node 1)
`EDGE_ID`	`int`, `long`	A number representing a weight’s associated edge identifier
`EDGE_NODE1_ID`	`int`, `long`	A number representing a weight’s associated edge’s first node
`EDGE_NODE1_NAME`	`string`	A string value representing a weight’s associated edge’s first node’s name
`EDGE_NODE2_ID`	`int`, `long`	A number representing a weight’s associated edge’s second node
`EDGE_NODE2_NAME`	`string`	A string value representing a weight’s associated edge’s second node’s name
`EDGE_PARTITION`	`long`	A number representing a weight’s associated edge’s partition ID
`EDGE_WKTLINE`	`wkt`	A WKT string representing a weight’s associated edge geospatial line; e.g., `LINESTRING(X1 Y1 [Z1], X2 Y2 [Z2])` See Geospatial Objects for more information on WKTs.
`FACTORSPECIFIED`	`float`, `double`, `int`, `long`	A number representing how much incoming cost values will be multiplied
`FROM_EDGE_ID`	`int`, `long`	A number representing a weight’s associated edge identifier that signifies the start of a turn; paired with `TO_EDGE_ID` to define additionally-weighted traversal from one edge to another through any single node Only applicable if the `add_turns` option was set to true during /create/graph . This identifier can be used to locally override any `*_turn_penalty` and/or `intersection_penalty` options previously set. See Using Turn-based Weights & Restrictions for more information.
`TO_EDGE_ID`	`int`, `long`	A number representing a weight’s associated edge identifier that signifies the end of a turn; paired with `FROM_EDGE_ID` to define additionally-weighted traversal from one edge to another through any single node Only applicable if the `add_turns` option was set to true during /create/graph . This identifier can be used to locally override any `*_turn_penalty` and/or `intersection_penalty` options previously set. See Using Turn-based Weights & Restrictions for more information.
`WKTPOINT`	`wkt`	A WKT string representing a weight’s associated WKT point Used exclusively in conjunction with `FACTORSPECIFIED` to create a combination for graphing weights by the inverse distance weighted averaging of WKT points composing a graph.
`VALUESPECIFIED`	`float`, `double`, `int`, `long`	A number representing the weight’s value

Currently, FACTORSPECIFIED will only affect the cost if the edge has a VALUESPECIFIED already established. This means that FACTORSPECIFIED should only be used in /solve/graph or in conjunction with a VALUESPECIFIED during /create/graph.

Restrictions

Restrictions represent a method of informing the graph solver which edges and/or nodes should be ignored for the solution. Restrictions can be defined using an integer ID and a value or as a switch (on or off).

Identifier	Supported Types	Description
`EDGE_DIRECTION`	`int`	A number representing what direction the edge can be traveled: * `0`: forward one-way edge (node 1 —> node 2) * `1`: two-way edge (node 1 —> node 2 and node 2 —> node 1) * `2`: backward one-way edge (node 2 —> node 1)
`EDGE_ID`	`int`, `long`	A number representing the restriction’s associated edge identifier
`EDGE_LABEL`	`string`	A string value referring to an edge label for restrictive purposes
`EDGE_NODE1_ID`	`int`, `long`	A number representing a restriction’s associated edge’s first node
`EDGE_NODE1_NAME`	`string`	A string value representing a restriction’s associated edge’s first node’s name
`EDGE_NODE2_ID`	`int`, `long`	A number representing a restriction’s associated edge’s second node
`EDGE_NODE2_NAME`	`string`	A string value representing a restriction’s associated edge’s second node’s name
`EDGE_PARTITION`	`long`	A number representing a restriction’s associated edge’s partition ID
`EDGE_WKTLINE`	`wkt`	A WKT string representing a weight’s associated edge geospatial line; e.g., `LINESTRING(X1 Y1 [Z1], X2 Y2 [Z2])` See Geospatial Objects for more information on WKTs.
`FROM_EDGE_ID`	`int`, `long`	A number representing the restriction’s associated edge identifier that signifies the start of a turn; paired with `TO_EDGE_ID` to define traversal restriction from one edge to another through any single node Only applicable if the `add_turns` option was set to true during /create/graph . This identifier can be used to locally override any `*_turn_penalty` and/or `intersection_penalty` options previously set. See Using Turn-based Weights & Restrictions for more information.
`NODE_ID`	`int`, `long`	A number representing the restriction’s associated node identifier
`NODE_LABEL`	`string`	A string value referring to a node label for restrictive purposes
`NODE_NAME`	`string`	A string value representing the restriction’s associated node
`NODE_WKTPOINT`	`wkt`	A WKT string representing the restriction’s associated node’s geospatial point, e.g., `POINT(X Y [Z])` See Geospatial Objects for more information on WKTs.
`ONOFFCOMPARED`	`int`	A number representing if the associated node or edge cannot be traversed, with `1` meaning it can be traversed and `0` meaning it cannot
`TO_EDGE_ID`	`int`, `long`	A number representing the restriction’s associated edge identifier that signifies the end of a turn; paired with `FROM_EDGE_ID` to define traversal restriction from one edge to another through any single node Only applicable if the `add_turns` option was set to true during /create/graph . This identifier can be used to locally override any `*_turn_penalty` and/or `intersection_penalty` options previously set. See Using Turn-based Weights & Restrictions for more information.
`VALUECOMPARED`	`float`, `double`, `int`, `long`	A number representing the value against which incoming costs will be compared

When using VALUECOMPARED, solvers will not use the given node or edge if the current cost is less than the restriction value. When using ONOFFCOMPARED, solvers will not use the given node or edge if the ONOFFCOMPARED value is set to 0 (off).

Identifier Combinations

For each component, there’s a minimum set of identifiers that must be used to properly create a graph. Each component’s identifier combinations must reference columns from the same table, e.g., the node combination of ID and NAME must both use the same table. The columns must also not be nullable. Identifier types across components should match where possible.

WKT identifiers can be matched to X/Y identifiers (and vice versa) within a user-specified tolerance (merge_tolerance under the /create/graph endpoint’s options map). Using ID or NAME identifiers relies on exact matching. The WKTLINE identifiers will use the line’s start and end points to map to an XY pair or WKTPOINT.

For example, if the identifier combination used for nodes is:

Node Identifier Combination Example

nodes = [
    TABLE_TAXI_N + ".id AS ID"
],

The edges identifier combination should include a match for the node ID. The following edge combination would match correctly with the node combination; note that matching node point(s) to edge endpoint(s) requires two edge endpoints to make an implicit edge between the points:

Edge Identifier Combination Example

edges = [
    TABLE_TAXI_E + ".pickup_id AS NODE1_ID",
    TABLE_TAXI_E + ".dropoff_id AS NODE2_ID"
],

The above example is not the only edge combinations available for the node ID identifier combination. See the Edges section below for other combinations.

If using multiple groups of combinations while creating, solving, querying, or matching a graph, the combinations must be separated by empty quotes ("") in the respective array, e.g.:

Query Identifier Combination Example

queries = [
    "{'Jane'} AS NODE_NAME",
    "",
    "{'chess'} AS TARGET_NODE_LABEL"
],

If specifying identifier combinations as raw values, the number of values within each identifier must match across the combination group, e.g.:

Query Identifier Combination Group Matching Example

restrictions = [
    "{'Susan', 'Tom'} AS NODE_NAME",
    "{0, 0} AS ONOFFCOMPARED"
],

Nodes

ID
ID, NAME
ID, WKTPOINT
ID, X, Y
NAME
NAME, WKTPOINT
NAME, X, Y
WKTPOINT
X, Y

The following identifiers can be added to any valid node combination:

LABEL
LABEL_KEY
PARTITION_BOUNDARY

Edges

ID, NODE1_ID, NODE2_ID
ID, NODE1_ID, NODE2_ID, DIRECTION
ID, NODE1_NAME, NODE2_NAME
ID, NODE1_WKTPOINT, NODE2_WKTPOINT
ID, NODE1_X, NODE1_Y, NODE2_X, NODE2_Y
ID, WKTLINE
ID, WKTLINE, DIRECTION
NODE1_ID, NODE2_ID
NODE1_NAME, NODE2_NAME
NODE1_WKTPOINT, NODE2_WKTPOINT
NODE1_X, NODE1_Y, NODE2_X, NODE2_Y
WKTLINE
WKTLINE, DIRECTION

Any or all of the following identifiers can be added to any valid edge combination:

LABEL
LABEL_KEY
PARTITION
WEIGHT_VALUESPECIFIED

Weights

EDGE_ID, VALUESPECIFIED
EDGE_ID, FACTORSPECIFIED
EDGE_WKTLINE, EDGE_DIRECTION, VALUESPECIFIED
EDGE_WKTLINE, VALUESPECIFIED
EDGE_WKTLINE, FACTORSPECIFIED
EDGE_NODE1_NAME, EDGE_NODE2_NAME, VALUESPECIFIED
EDGE_NODE1_NAME, EDGE_NODE2_NAME, FACTORSPECIFIED
EDGE_NODE1_ID, EDGE_NODE2_ID, VALUESPECIFIED
EDGE_NODE1_ID, EDGE_NODE2_ID, FACTORSPECIFIED
WKTPOINT, FACTORSPECIFIED

If utilizing turn penalties, the following combination becomes applicable:

FROM_EDGE_ID, TO_EDGE_ID, VALUESPECIFIED

Restrictions

EDGE_ID, ONOFFCOMPARED
EDGE_ID, VALUECOMPARED
EDGE_LABEL, ONOFFCOMPARED
EDGE_NODE1_ID, EDGE_NODE2_ID, ONOFFCOMPARED
EDGE_NODE1_NAME, EDGE_NODE2_NAME, ONOFFCOMPARED
EDGE_WKTLINE, EDGE_DIRECTION, ONOFFCOMPARED
EDGE_WKTLINE, EDGE_DIRECTION, VALUECOMPARED
EDGE_WKTLINE, ONOFFCOMPARED
EDGE_WKTLINE, VALUECOMPARED
NODE_ID, ONOFFCOMPARED
NODE_ID, VALUECOMPARED
NODE_LABEL, ONOFFCOMPARED
NODE_NAME, VALUECOMPARED
NODE_NAME, ONOFFCOMPARED
NODE_WKTPOINT, ONOFFCOMPARED
NODE_WKTPOINT, VALUECOMPARED

If utilizing turn restrictions, the following combination becomes applicable:

FROM_EDGE_ID, TO_EDGE_ID, ONOFFCOMPARED

Using Labels

Labels are a type of identifier that provide additional context to a node or edge and can act as a target for a query, among other things. Labels are paired with another identifier in several valid combinations listed above, but each unique label must be part of its own combination; i.e., there cannot be two labels in the same identifier combination. For example, this is a valid multi-label configuration:

Valid Multi-Label Configuration

nodes = [
    TABLE_P + ".name AS NAME",
    TABLE_P + ".interest AS LABEL",
    "",
    TABLE_P + ".name AS NAME",
    TABLE_P + ".gender AS LABEL"
],

But this example is invalid:

Invalid Multi-Label Configuration

nodes = [
    TABLE_P + ".name AS NAME",
    TABLE_P + ".interest AS LABEL",
    TABLE_P + ".gender AS LABEL"
],

LABEL values can be used in graph queries, matches, & solves.

Node / Edge Labels

The LABEL node identifiers & edge identifiers are used to provide additional string-based information about a node or edge respectively, similarly to the node NAME (and other related) identifiers. Multiple labels can be applied to the same node or edge. The LABEL_KEY node identifiers & edge identifiers are used to create groupings of corresponding LABEL identifier values. Any node or edge with a label that is part of a label key group will also have that label key applied to it as an additional LABEL value. LABEL_KEY values can be used in graph queries, matches, & solves.

nodes = [
    TABLE_M + ".title AS NAME",
    TABLE_M + ".genre AS LABEL",
    "",
    # Apply the label key "movie" to any node that also has been labeled
    # with a value from the genre column of TABLE_M (movie nodes, above)
    "{'movie'} AS LABEL_KEY",
    TABLE_M + ".genre AS LABEL"
],

Restriction Labels

The NODE_LABEL and EDGE_LABEL restriction identifiers are used to restrict the value set defined as node & edge LABEL respectively. These restrictive identifiers must follow an already-defined node or edge LABEL; i.e., they cannot be used on their own at graph creation time. They are used in restriction combinations just like other restriction identifiers. For example, if the relation between two people is used as the edge LABEL when creating a graph:

Edge Identifier Combination

edges = [
    knows_table + ".name1 AS NODE1_NAME",
    knows_table + ".name2 AS NODE2_NAME",
    knows_table + ".relation AS LABEL"
],

Then the family relation label can be restricted during the subsequent query using the EDGE_LABEL restriction identifier, meaning that the query will not traverse any family relationship edges when moving from person node to person node:

Restriction Identifier Combination Example

restrictions = [
    "{'family'} AS EDGE_LABEL"
],

Using Turn-based Weights & Restrictions

Turn-based weights and restrictions are used to add a cost to solutions utilizing turn types implemented during graph creation or modification. If the add_turns option is set to true during /create/graph or /modify/graph operations, dummy pillowed edges will be added to each intersection of edges in a graph to mimic realistic turns. These dummy edges will not have any weight by default and will have the coordinates of their origin point. The available turn types are as follows:

Left turns — turning left from one edge on to another
Right turns — turning right from one edge on to another
Intersection — continuing through an intersection of edges (e.g., a stoplight)
Sharp turns — turning sharply left or right or a u-turn; a sharp turn or u-turn attribution is determined by the angle of the turn (the turn_angle setting)

For example, say you have a dataset featuring the intersection (designated by the traffic light) below:

Road 1 is a one-way road going north. Road 2 is a one-way road going west. If you were to create a graph from this dataset with add_turns set to false, the edges might look like this:

A solution containing the left turn from road 1 on to road 2 using this graph would incorporate edge 1 —> edge 3. On the other hand, if you were to create a graph from this dataset with add_turns set to true, the edges might look like this instead (note the two additional dummy edges designated by the dotted lines):

The L and the X associated with the dummy edges designate a left turn and intersection respectively, but these attributions could change depending on the turn angle set. A solution containing the left turn from road 1 on to road 2 using this graph instead would incorporate edge 1 —> edge 4 —> edge 3. Once turns have been enabled and the turn angle has been set, turn penalties can be incurred via the /solve/graph or the /match/graph endpoints using two methods:

Setting penalties uniformly per turn type across the graph using the left_turn_penalty, right_turn_penalty, intersection_penalty, or sharp_turn_penalty options
Setting penalties on a per-edge basis using the following weight identifier combinations: FROM_EDGE_ID, TO_EDGE_ID, VALUESPECIFIED
Setting restrictions on a per-edge basis using the following restriction identifier combinations: FROM_EDGE_ID, TO_EDGE_ID, ONOFFCOMPARED

Using the weight or restriction combinations will locally override any penalty options set.

For more information on using turn penalties and restrictions, see the turn penalties and restrictions graph example.

Creating a Graph

Creating a graph is serviced by the /create/graph endpoint; this involves reading from tables with annotated component identifiers and drawing relationships between given nodes and/or edges on a graph, taking into account nodes or edges between nodes that should be favored or ignored.

Though it’s recommended edges and weights are kept in the same table, it’s not required.

Once the components are setup, the graph can be created. Requirements for creating a graph include:

name for the graph
if the graph is directed or not
edges
weights (for most solver types)

Nodes and restrictions are not required to create a graph. If nodes are included, however, they should be kept in a separate table from edges and weights. If restrictions are included, they can exist in either the nodes table and/or edges/weights table(s) or in an entirely separate table.

A graph name must adhere to the standard naming criteria. Each graph exists within a schema and follows the standard name resolution rules for tables.

Directed Graphs

Whether a graph is directed or not can determine how a graph is solved or queried. Using Components and Identifiers and Identifier Combinations for context, edges connect two nodes together (“node 1” and “node 2”). When a graph is directed, these nodes that comprise a given edge have an implicit direction: “node 1” to “node 2”. Regardless if these nodes have a spatial context, Kinetica will treat “node 2” as if it must be traveled to directly from “node 1” (whatever their underlying values may be: Jim and George , POINT(0 0) and POINT(9 10), 32 and 45, etc.). For example, given the below non-directed graph:

Attempting to solve for the shortest path from node F to node A would result in a SOLVERS_EDGE_PATH of F, E, D, C, B, A. Querying for other nodes attached to node E would result in two adjacencies: F and D. On the other hand, given the below directed graph:

Attempting to solve for the shortest path from node F to node A would be unsuccessful because there are only edges going toward F (and none leading away from F and subsequently toward A). Querying for other nodes attached to node E would result in a single adjacency: F.

Modifying a Graph

Modifying a graph is serviced by the /modify/graph endpoint; this involves using given node(s), edge(s), weight(s), restriction(s), and option(s) to update an existing graph. All parameters and options available to /modify/graph are also available to /create/graph; as such, many of the same principles apply to using /modify/graph. Requirements for modifying a graph include:

name for the existing graph
components/identifiers and options used to modify the graph

Solving a Graph

Solving a graph is serviced by the /solve/graph endpoint; this involves using given source node(s), destination node(s), and any weights or restrictions from an existing graph to calculate a given solution type. Off-graph spatial locations are accepted in all solvers, with the results being corrected to snap locations. The calculated solution is then placed in a table in Kinetica; note that many concurrent solves over the same graph are possible. The source node determines from which node the graph solution routing is started; the destination node(s) determines at which node the graph solution will complete routes. Source/destination node(s) can be an ID, name, or WKT point. Requirements for solving a graph include:

name of the graph to solve
solution type

Additional weights and restrictions beyond those defined in the graph creation stage can also be provided. Any provided weights will be added (in the case of VALUESPECIFIED) to or multiplied by (in the case of FACTORSPECIFIED) the existing weight(s). Consult Components and Identifiers for formatting and specifications.

There are several solution types to choose from:

Solver	Description	CPU Parallel
`ALLPATHS`	Determines all reasonable paths between a source and destination pair.	X
`BACKHAUL_ROUTING`	Determines the optimal routes between remote asset nodes and fixed asset nodes.	X
`CENTRALITY`	Calculates the degree of a node to depict how many pairs of individuals that would have to go through the node to reach one another in the minimum number of hops. Also known as betweenness.	X
`CLOSENESS`	Calculates the centrality closeness score per node as the sum of the inverse shortest path costs to all nodes in the graph.	X
`INVERSE_SHORTEST_PATH`	Determines the shortest path downstream using multiple technician routing.	X
`MULTIPLE_ROUTING`	Calculates the shortest possible route between the nodes and returns to the origin node — also known as the traveling salesman.	X
`PAGE_RANK`	Calculates how connected the nodes are and determines which nodes are the most important. Weights are not required.	X
`PROBABILITY_RANK`	Calculates the probability of a node being connected to another node using hidden Markov chains.	X
`SHORTEST_PATH`	Determines the shortest path upstream between given source(s) and destination(s).	X
`STATS_ALL`	Calculates graph statistics such as graph diameter, longest pairs, vertex valences, topology numbers, average and max cluster sizes, etc.	X

Non-Batch Solving

Non-batch solving is utilized exclusively with every solver except for SHORTEST_PATH, in which case the length of the source and destination node lists will determine if non-batch or Batch Solving is utilized. If the source and destination lists do not match and the SHORTEST_PATH solver is specified, batch solving will be used. If the source and destination node lists match in length (and SHORTEST_PATH is the specified solver), non-batch solving will be used. This means that the first source index would only be matched with the first destination index, the second source index to the second destination index, etc. For example, if you attempt to solve three unique sources (node_1, node_2, and node_3) to three unique destinations (dest_1, dest_2, dest_3) by only listing each source and destination once (calling /solve/graph with source_nodes set to ["node_1", "node_2", "node_3"] and destination_nodes set to ["dest_1", "dest_2", "dest_3"]), it would yield a result set like this:

+--------+--------+
| SOURCE | TARGET |
+========+========+
| node_1 | dest_1 |
+--------+--------+
| node_2 | dest_2 |
+--------+--------+
| node_3 | dest_3 |
+--------+--------+

Batch Solving

If using the SHORTEST_PATH solver, multiple sources can be routed to multiple destinations using batch solving. A batch will be defined by each unique source node visiting each destination node provided which will yield a Cartesian product.

Calculations from multiple unique sources are faster and more efficient than calculations with one unique source, but results may differ slightly between multiple unique source calculations and single unique source calculations (less than ~1% variance).

For example, if you wish to batch solve two unique sources (node_1, node_2) each routing to three unique destinations (dest_1, dest_2, dest_3), you’d list each source and each destination, noting that the solution will automatically map node_1 and node_2 to dest_1, dest_2, and dest_3 individually. A call to /solve/graph with source_nodes set to ["node_1", "node_2"] and destination_nodes set to ["dest_1", "dest_2", "dest_3"] would yield a result set like this:

+--------+--------+
| SOURCE | TARGET |
+========+========+
| node_1 | dest_1 |
+--------+--------+
| node_1 | dest_2 |
+--------+--------+
| node_1 | dest_3 |
+--------+--------+
| node_2 | dest_1 |
+--------+--------+
| node_2 | dest_2 |
+--------+--------+
| node_2 | dest_3 |
+--------+--------+

However, if you wish to batch solve three unique sources (node_1, node_2, node_3) to three unique destinations (dest_1, dest_2, dest_3) (or n sources to n destinations for that matter), you’ll need to list out all 9 combinations manually, e.g.,:

Source & Destination Node Definitions When the Lists Are the Same Size

source_nodes=[
    "node1", "node1", "node1",
    "node2", "node2", "node2",
    "node3", "node3", "node3"
],
destination_nodes=[
    "dest_1", "dest_2", "dest_3",
    "dest_1", "dest_2", "dest_3",
    "dest_1", "dest_2", "dest_3"
],

Remember, if the source and destination nodes lists match in length, non-batch solving is used.

The above setup would yield a similar result set as the first example:

+--------+--------+
| SOURCE | TARGET |
+========+========+
| node_1 | dest_1 |
+--------+--------+
| node_1 | dest_2 |
+--------+--------+
| node_1 | dest_3 |
+--------+--------+
| node_2 | dest_1 |
+--------+--------+
| node_2 | dest_2 |
+--------+--------+
| node_2 | dest_3 |
+--------+--------+
| node_3 | dest_1 |
+--------+--------+
| node_3 | dest_2 |
+--------+--------+
| node_3 | dest_3 |
+--------+--------+

Querying a Graph

Querying a graph is serviced by the /query/graph endpoint; this involves querying a graph for adjacent nodes (if provided edges) or adjacent edges (if provided nodes) using integer IDs, names, or WKT information. Additional adjacent rings around the specified nodes can also be queried. Results can be exported to a table in Kinetica. Requirements for querying a graph include:

name of the graph to query
a list of edge or node IDs, names, or WKTs to query

Additional restrictions beyond those defined in the graph creation stage can also be provided. Query restrictions can utilize any of the restriction identifiers, including the unique LABEL identifiers.

Query Identifiers

Nodes or edges to be queried can be identified using any of the query-specific identifiers below.

Consult Components and Identifiers and Identifier Combinations for general information on identifiers and combinations. Note that the same limitations that apply to /create/graph and /solve/graph identifiers also apply to /query/graph identifiers

Identifier	Supported Types	Description
`EDGE_ID`	`int`, `long`	Defines the edge `ID` value that will be matched against in the source graph to determine the source for the query
`EDGE_LABEL`	`string`	Defines the edge `LABEL` value that will be matched against in the source graph to determine the source(s) for the query See Using Labels for more information.
`EDGE_WKTLINE`	`wkt`	Defines the edge `WKTLINE` value that will be matched against in the source graph to determine the source for the query
`HOP_ID`	`int`, `long`	Defines the number of hops from the source node or edge at which the associated node or edge filter should be applied; use a negative number to allow directed edges to be traversed in the reverse direction for that hop number specifically See Using Hops for more information.
`NODE_ID`	`int`, `long`	Defines the node `ID` value that will be matched against in the source graph to determine the source for the query
`NODE_LABEL`	`string`	Defines the node `LABEL` value that will be matched against in the source graph to determine the source(s) for the query See Using Labels for more information.
`NODE_NAME`	`string`	Defines the node `NAME` value that will be matched against in the the source graph to determine the source for the query
`NODE_WKTPOINT`	`wkt`	Defines the node `WKTPOINT` value that will be matched against in the source graph to determine the source for the query
`NODE1_ID`	`int`, `long`	Defines the node `ID` value that will be matched against in the source graph (in conjunction with `NODE2_ID`) to determine the source for the query
`NODE1_NAME`	`string`	Defines the node `NAME` value that will be matched against in the source graph (in conjunction with `NODE2_NAME`) to determine the source for the query
`NODE1_WKTPOINT`	`wkt`	Defines the node `WKTPOINT` value that will be matched against in the source graph (in conjunction with `NODE2_WKTPOINT`) to determine the source for the query
`NODE2_ID`	`int`, `long`	Defines the node `ID` value that will be matched against in the source graph (in conjunction with `NODE1_ID`) to determine the source for the query
`NODE2_NAME`	`string`	Defines the node `NAME` value that will be matched against in the source graph (in conjunction with `NODE1_NAME`) to determine the source for the query
`NODE2_WKTPOINT`	`wkt`	Defines the node `WKTPOINT` value that will be matched against in the source graph (in conjunction with `NODE1_WKTPOINT`) to determine the source for the query
`TARGET_NODE_LABEL`	`string`	Defines the node `LABEL` value that will be matched against in the source graph to determine the destination for the query as well as the path taken through the graph to arrive at the destination

Query Identifier Combinations

To properly query a graph using identifiers, there’s a minimum set of identifiers that must be used. Each identifier combination must reference columns from the same table, e.g., the combination NODE1_ID and NODE2_ID must both use columns from the same table. The columns must also not be nullable.

Nodes

The following combinations will query for edges adjacent to the node associated with the given information:

NODE_ID
NODE_NAME
NODE_WKTPOINT

The following label can be used to select multiple matching nodes as the starting point:

NODE_LABEL

The following identifier can be added to any valid node combination to match the associated node criteria at the given number of hops from the source:

HOP_ID

Edges

The following combinations will query for nodes adjacent to the edge associated with the given information:

EDGE_ID
EDGE_WKTLINE
NODE1_ID, NODE2_ID
NODE1_NAME, NODE2_NAME
NODE1_WKTPOINT, NODE2_WKTPOINT

The following label can be used to select multiple matching edges as the starting point:

EDGE_LABEL

The following identifier can be added to any valid edge combination to match the associated edge criteria at the given number of hops from the source:

HOP_ID

Using Query Identifiers

A node identifier can be used to identify the source of a query, returning features connected to that node within the provided number of rings:

Query Node Identifier Example (Single Key Search)

queries = [
    "{'Al Pacino'} AS NODE_NAME"
],

Multiple node identifiers can be used to start the search from multiple sources:

Query Node Identifiers Example (Multiple Key Search, X OR Y)

queries = [
    "{'Al Pacino', 'The Godfather'} AS NODE_NAME"
],

A rings value of 1 will return nodes connected directly to nodes that match the provided query exactly; in this case, the query would return movies connected to Al Pacino and actors/directors connected to The Godfather.

A set of edge identifiers can be used to determine whether there is a direct connection between two entities:

Query Edge Identifiers Example (Single Key Search)

queries = [
    "{'Al Pacino'} AS NODE1_NAME",
    "{'The Godfather'} AS NODE2_NAME"
],

The restriction & rings options do not apply when querying on edges, so only exact matches with edge identifiers are possible.

Implicitly defined nodes, e.g., from graphs defined with just edges and/or weights, cannot be queried.

Node / Edge Labels

The NODE_LABEL and EDGE_LABEL query identifiers are not paired with other query combinations; they are used to retrieve only the nodes and/or edges associated with a given label. For example, a node label could be used to find the directors of thrillers:

Query Node Label Example

queries = [
    "{'thriller'} AS NODE_LABEL"
],

An edge label could be used to find all directors and the movies they’ve directed:

Query Edge Label Example

queries = [
    "{'directed'} AS EDGE_LABEL"
],

Target Labels

The TARGET_NODE_LABEL query identifier is always paired with another query combination to define a source-destination relationship and pathing for a query. This identifier also must follow an already-defined node LABEL. Note that an adjacency output table will have two additional columns if the TARGET_NODE_LABEL identifier is used:

PATH_ID - an ID that helps identify the different paths taken to arrive at the query target if there is more than one adjacency for a given query.
RING_ID - an ID that helps identify the steps taken to arrive at a query target. The RING_ID can also be referred to as the hop ID or number of hops it took to arrive at the query target

For example, with a rings of 3, a starting node of Jean Reno and a target node of drama; one could find actors & directors involved in dramas that have also acted in or directed Jean Reno movies:

Query Target Node Label Example

queries = [
    "{'Jean Reno'} AS NODE_NAME",
    "",
    "{'drama'} AS TARGET_NODE_LABEL"
],

The query results in two tables—the adjacency table contains the result edges, while the adjacency node table contains the result nodes. The adjacency node table for this query might show the following, that the drama Jean Reno is connected to in 3 hops is The Godfather:

Target Node Label Node Results

+--------------------------+
| QUERY_NODE_NAME_TARGET   |
+==========================+
| The Godfather            |
+--------------------------+

The adjacency table for this query might show the following, that the path from Jean Reno to The Godfather is as follows:

Jean Reno acted in Ronin
Robert DeNiro acted in Ronin
Robert DeNiro acted in the drama The Godfather

Target Node Label Edge Results

+--------------------+--------------------+
| QUERY_NODE1_NAME   | QUERY_NODE2_NAME   |
+====================+====================+
| Jean Reno          | Ronin              |
+--------------------+--------------------+
| Robert De Niro     | The Godfather      |
+--------------------+--------------------+
| Ronin              | Robert De Niro     |
+--------------------+--------------------+

Using Hops

Queries can make use of hop-based filtering—matching only those nodes or edges at a certain hop-distance from the source node. The number associated with the HOP_ID label tells the query at how many moves away from the source node or edge the paired query identifier should be matched. For instance, a HOP_ID of 3 paired with a NODE_LABEL of actor will only return results where the node 3 hops from the source has a label of actor. To traverse directed (one-way) edges in the reverse direction for a given hop, make the HOP_ID a negative number. For instance, a HOP_ID of -2 will allow directed edges that are 2 hops from the source to be crossed in either direction. In contrast, the force_undirected option allows all directed edges to be traversed in either direction, regardless of distance from the source. The following is an example query that returns the titles and directors of movies in which James Spader has acted, given an appropriately configured graph of actors, directors, & movies/shows. Here, the query starts with the James Spader actor node and uses the sequence of HOP_ID filters to:

move to all the nodes in which James Spader has acted in the 1st hop
filter out any 1st-hop nodes which aren’t a MOVIE (e.g., TV shows)
find the director nodes connected to those movies in the 2nd hop; note the -2 for the HOP_ID allows edges from the director to the movie they directed, which are one-way edges from director to movie, to be traversed in reverse in order to find the director of the movie

Query by Hop ID Example

query_response = kinetica.query_graph(
    graph_name = GRAPH_NAME,
    queries = [
        "{'James Spader'} AS NODE_NAME",
        "",
        "{1} AS HOP_ID",
        "{'acted'} AS EDGE_LABEL",
        "",
        "{1} AS HOP_ID",
        "{'MOVIE'} AS NODE_LABEL",
        "",
        "{-2} AS HOP_ID",
        "{'directed'} AS EDGE_LABEL"
    ],
    adjacency_table = GRAPH_ADJ_TABLE,
    rings = 2
)

Finding Common Labels

To find labels shared by both the source & target nodes in a query result, as well as labels shared by edges along the result path, use the find_common_labels option. This will return a LABELS column in the response edge list, or LABELS columns in both the edges & nodes output tables if adjacency_table is specified. The LABELS column will contain all labels that the edges along the result path have in common; and, when adjacency_table is given, all the labels that the source & target nodes have in common.

Matching a Graph

Matching a graph is serviced by the /match/graph endpoint; this involves matching a directed route implied by a given set of latitude/longitude points to an existing underlying road network graph using a given solution type. The solution is then calculated and output to two tables (consult /match/graph for more information):

A table containing track information and the mean square error score — the lower the number, the more accurate a match.
A table containing the coordinate information and how it relates to the track information and segment from the underlying graph.

Requirements for matching a graph include:

name of the graph to match
sample points
solution type

Solution types available:

Solver	Description	CPU Parallel
`MARKOV_CHAIN`	Matches sample points to the graph using the Hidden Markov Model (HMM)-based method, which conducts a range-tree closest-edge search to find the best combinations of possible road segments for each sample point to create the best route. The route is secured one point at a time, so the prediction is corrected after each point. This solution type is the most accurate, but also the most computationally intensive.	X
`MATCH_BATCH_SOLVES`	Matches each provided sample source and destination pair using the shortest path between the points.	X
`MATCH_CHARGING_STATIONS`	Matches a given sample source and destination pair to the optimal recharging stations along the route (for EVs).	X
`MATCH_CLUSTERS`	Matches the graph nodes with a cluster index using the Louvain clustering algorithm. .. note:: Parallel running of this solver is experimental and can be invoked .. note:: Parallel running of this solver is experimental and can be invoked .. note:: Parallel running of this solver is experimental and can be invoked .. note:: Parallel running of this solver is experimental and can be invoked .. note:: Parallel running of this solver is experimental and can be invoked .. note:: Parallel running of this solver is experimental and can be invoked .. note:: Parallel running of this solver is experimental and can be invoked .. note:: Parallel running of this solver is experimental and can be invoked .. note:: Parallel running of this solver is experimental and can be invoked with the `parallel_clustering` option.	X* Parallel running of this solver is experimental and can be invoked \|
`MATCH_LOOPS`	Matches closed loops (Eulerian paths) originating and ending at each graph node between min and max hops (levels).	X
`MATCH_OD_PAIRS`	Matches sample points to find the most probable path between origin and destination (OD) pairs with given cost constraints.	X
`MATCH_SIMILARITY`	Computes the Jaccard similarity between vertex pairs and N-level intersections within M hops.	X
`MATCH_SUPPLY_DEMAND`	Matches sample generic supply depots to generic demand points using abstract transportation (referred to as trucks). Each route is determined by a truck’s ability (size) to service demand at each demand point.	X

Match Identifiers

Mapping a graph to a table requires a set of sample points. Sample points must be provided to the /match/graph endpoint using the unique identifiers below.

Identifier	Supported Types	Description
`DEMAND_ID`	`int`, `long`	A number representing a demand’s unique identifier
`DEMAND_PENALTY`	`int`, `long`, `float`, `double`	A number representing the cost for unloading at this site per unit unloaded, regardless of which supplier is unloading at it, and in addition to the global unloading cost per unit
`DEMAND_REGION_ID`	`int`, `long`	A number representing a demand source’s unique identifier
`DEMAND_SIZE`	`int`, `long`, `float`	A number representing the size of the primary (or only) demand; used in demanding the supply denoted by `SUPPLY_SIZE`
`DEMAND_SIZE2`	`int`, `long`, `float`	A number representing the size of the secondary demand; used in demanding the supply denoted by `SUPPLY_SIZE2`, when there are two different demand type constraints (e.g., weight & volume)
`DEMAND_WKTPOINT`	`wkt`	A WKT string representing a demand’s geospatial source point
`DESTINATION_WKTPOINT`	`wkt`	A WKT string representing a sample’s geospatial destination point; e.g., `POINT(X Y [Z])` See Geospatial Objects for more information on WKTs.
`ID`	`int`, `long`	A number representing a sample’s unique identifier
`NAME`	`string`	A string value representing a sample’s name
`OD_ID`	`int`, `long`	A number representing an OD-pair-related sample’s unique identifier
`OD_TIME`	`float`, `double`	A number representing an origin-destination (OD) pair-related sample’s cost `OD_TIME` may not necessarily depict time, e.g., if the graph’s weights were distance-based, `OD_TIME` could theoretically reflect distance as well, assuming the values are consistent with the values used to create the original weights.
`ORIGIN_WKTPOINT`	`wkt`	A WKT string representing a sample’s geospatial origin point; e.g., `POINT(X Y [Z])` See Geospatial Objects for more information on WKTs.
`PRIORITY`	`int`	A number representing a sample’s priority in match processing
`SUPPLY_ID`	`int`, `long`	A number representing a supplier’s unique identifier
`SUPPLY_ODDEVEN`	`int`	A number representing whether the supplier is “odd”, “even”, or neither; used in applying odd/even-based restrictions, such as those used in Jakarta, Indonesia: * `0`: supplier is not subject to odd/even-based restrictions * `1`: supplier is “odd” numbered * `2`: supplier is “even” numbered
`SUPPLY_PENALTY`	`int`, `long`, `float`, `double`	A number representing the cost for unloading this supplier per unit unloaded, regardless of which demand site it is visiting, and in addition to the global unloading cost per unit
`SUPPLY_REGION_ID`	`int`, `long`	A number representing a supplier source’s unique identifier
`SUPPLY_SIZE`	`int`, `long`, `float`	A number representing a supplier’s primary (or only) capacity; used in meeting the demand denoted by `DEMAND_SIZE`
`SUPPLY_SIZE2`	`int`, `long`, `float`	A number representing a supplier’s secondary capacity; used in meeting the demand denoted by `DEMAND_SIZE2`, when there are two different capacity type constraints (e.g., weight & volume)
`SUPPLY_WKTPOINT`	`wkt`	A WKT string representing a supplier’s geospatial source point
`TIME`	`long`, `double`	A number representing a sample’s time value `TIME` could theoretically represent any time unit (seconds, minutes, epoch, etc.) as long as the representations are consistent for the column in the source table.
`TRIPID`	`int`, `long`	A number representing a unique trip identifier
`WKTPOINT`	`wkt`	A WKT string representing a sample’s geospatial point; e.g., `POINT(X Y [Z])` See Geospatial Objects for more information on WKTs.
`X`	`float`, `double`	A number representing a sample’s X or longitude value
`Y`	`float`, `double`	A number representing a sample’s Y or latitude value

Records with a timestamp of 0 for the TIME column will be ignored when calculating the solution.

Match Identifier Combinations

To properly match a graph using identifiers, there’s a minimum set of identifiers that must be used. Each identifier combination must reference columns from the same table, e.g., the combination WKTPOINT and TIME must both use columns from the same table. The columns must also not be nullable. The valid match identifier combinations per match graph solver are as follows:

Markov Chain

X, Y, TIME
WKTPOINT, TIME
X, Y, TIME, TRIPID
WKTPOINT, TIME, TRIPID

If using the TRIPID identifier to match the graph, all trip IDs will be used in the solution.

Match Batch Solves

ORIGIN_WKTPOINT, DESTINATION_WKTPOINT, OD_ID

Match Loops

ID
NAME
WKTPOINT

Using no identifier combination will result in loops being searched for across the entire graph

Match OD Pairs

ORIGIN_WKTPOINT, DESTINATION_WKTPOINT, OD_TIME
ORIGIN_WKTPOINT, DESTINATION_WKTPOINT, OD_TIME, OD_ID

Match Supply Demand

A supply and demand combination are used in conjunction with each other to match suppliers to demand. Reference Identifier Combinations for using multiple combinations syntax.

Demand Combinations

DEMAND_ID, DEMAND_WKTPOINT, DEMAND_SIZE, DEMAND_REGION_ID
DEMAND_ID, DEMAND_WKTPOINT, DEMAND_SIZE, DEMAND_REGION_ID, PRIORITY

Any or all of the following identifiers can be added to a demand combination:

DEMAND_PENALTY
DEMAND_SIZE2 (must be paired with a supply combination using SUPPLY_SIZE2 )

Supply Combinations

SUPPLY_REGION_ID, SUPPLY_WKTPOINT, SUPPLY_ID, SUPPLY_SIZE

Any or all of the following identifiers can be added to a supply combination:

SUPPLY_ODDEVEN
SUPPLY_PENALTY
SUPPLY_SIZE2 (must be paired with a demand combination using DEMAND_SIZE2 )

Showing a Graph

Using /show/graph will provide detailed information about a graph, including number of nodes and edges in the graph, whether the graph is directed or persisted, and more.

Deleting a Graph

Deleting a graph is serviced by the /delete/graph endpoint; this involves providing a graph name to delete the graph from the graph server (memory) and persist (if applicable).

If a graph was saved to persist upon creation and then was deleted from the server (but NOT persist), it can be reloaded from persist by recreating the graph using the same graph_name.

Managing Permissions for a Graph

Graph permissions can be managed either through SQL or through the native API.

Examples

For detailed usage of the graph capability, see Guides:

Limitations and Cautions

Groups of valid identifier combinations must be from the same table, e.g., node ID & NAME must reference columns from the same table
Node, edge, weight, and optional restriction identifiers should be matched to yield a useful graph (node ID —> edge NODE1_ID and edge ID —> weights EDGE_ID, etc.)
Groups of valid numerical identifier combinations must be the same type, e.g., if edge ID is identified from an int column, both edge NODE1_ID & NODE2_ID must also be int
Graphs cannot be created using columns with the nullable property
If no ID identifier is provided, weights will be matched with edges by table row, e.g., the first record in the weight table will be used for the first record in the edge table (should the weights and edges be separate). If two weights are specified for the same edge, the weights are added (if both are using the VALUESPECIFIED identifier) or multiplied (if one or both are using the FACTORSPECIFIED identifier) together.
A node or edge can have up to 64 unique labels.

​Solvers

​Solve Graph Solvers

​Match Graph Solvers

​Components and Identifiers

​Nodes

​Edges

​Weights

​Restrictions

​Identifier Combinations

​Nodes

​Edges

​Weights

​Restrictions

​Using Labels

​Node / Edge Labels

​Restriction Labels

​Using Turn-based Weights & Restrictions

​Creating a Graph

​Directed Graphs

​Modifying a Graph

​Solving a Graph

​Non-Batch Solving

​Batch Solving

​Querying a Graph

​Query Identifiers

​Query Identifier Combinations

​Nodes

​Edges

​Using Query Identifiers

​Node / Edge Labels

​Target Labels

​Using Hops

​Finding Common Labels

​Matching a Graph

​Match Identifiers

​Match Identifier Combinations

​Markov Chain

​Match Batch Solves

​Match Loops

​Match OD Pairs

​Match Supply Demand

​Showing a Graph

​Deleting a Graph

​Managing Permissions for a Graph

​Examples

​Limitations and Cautions

Solvers

Solve Graph Solvers

Match Graph Solvers

Components and Identifiers

Nodes

Edges

Weights

Restrictions

Identifier Combinations

Nodes

Edges

Weights

Restrictions

Using Labels

Node / Edge Labels

Restriction Labels

Using Turn-based Weights & Restrictions

Creating a Graph

Directed Graphs

Modifying a Graph

Solving a Graph

Non-Batch Solving

Batch Solving

Querying a Graph

Query Identifiers

Query Identifier Combinations

Nodes

Edges

Using Query Identifiers

Node / Edge Labels

Target Labels

Using Hops

Finding Common Labels

Matching a Graph

Match Identifiers

Match Identifier Combinations

Markov Chain

Match Batch Solves

Match Loops

Match OD Pairs

Match Supply Demand

Showing a Graph

Deleting a Graph

Managing Permissions for a Graph

Examples

Limitations and Cautions
